H/T16MM Table-type High-Speed Centrifuge machines
Features:
The design of the whole machine is in line with the ergonomics.With a complete steel structure and a stainless steel centrifuge cavity,it is safer,better looking and more efficient.

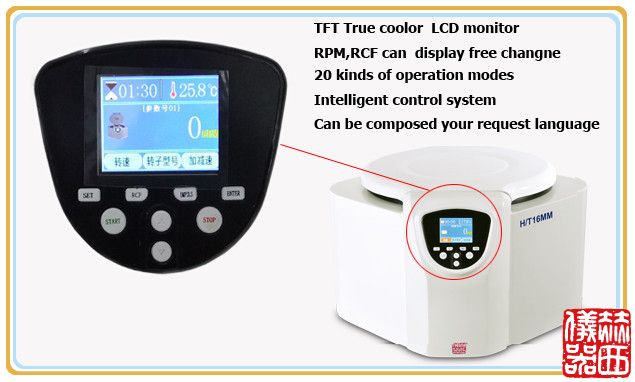

With TFT true-color LCD wide-screen touch monitor featured by intelligent control,easy and convenient operation,a touch panel and a simultaneous indication of both the set parameters and operation ones.
Driven by a variable-frequency brushless motor to achieve quite and clean operation.
With a dedicated key indicating the centrifugal force.
With a motor gate lock mute mechanical & electrical integration.
Designed with a shock absorber to reduce vibration and achieve smooth running.
Rotors and adapters can be tailor-made according to customer's requirements.
Functions can be customized according to customer's needs,man-machine interaction is direct and pragmatic.
Can store 20 user programme.
|
Specification:
|
|
Model
|
H/T16MM
|
|
Max Speed（r/min）
|
16500
|
|
Max RCF（×g）
|
18780
|
|
Max capacity
|
6×50ml
|
|
Time range
|
0-99h59min
|
|
Programme
|
20
|
| Total Power |
350w
|
|
Noise
|
≤65dB
|
|
Power
|
AC220V 50Hz
|
|
weight
|
35kg
|
|
Dimension（L×W×H）
|
500×440×330mm
|
|
H/T16MM
|
Capacity
|
Max speed（r/ min）
|
Max RCF（×g）
|
|

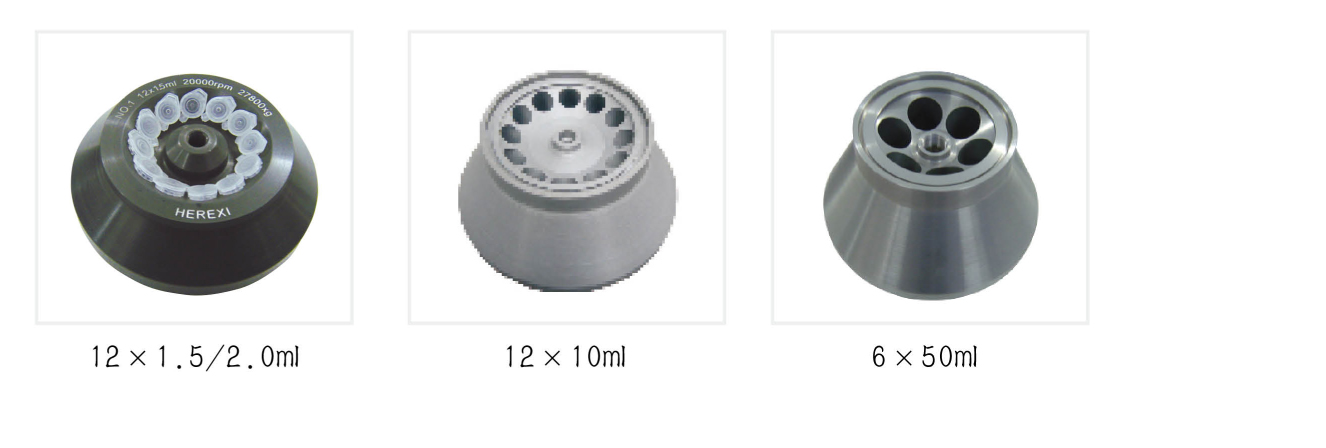

Angle rotor
|
12×1.5/2.0ml
|
16500
|
18780
|
|
18×1.5/2.0ml
|
15000
|
17770
|
|
24×1.5/2.0ml
|
14000
|
18180
|
|
10×5ml
|
13500
|
12570
|
|
8×15ml
|
13500
|
11480
|
|
12×10ml/5ml
|
12000
|
13400
|
|
6×50ml
|
11000
|
11610
|
|
6×50ml
|
6000
|
3460
|
|
swing rotor
|
12×10ml
|
4000
|
2330
|
|
2×2×48 hole
|
3000
|
1400
|
|
