Feature:
With FTF true-color LCD widescreen touch monitor featured by intelligent control,touchable/push-botton operation models for simultaneous control.
Automatically record the operational parameters,can be directly started by RCF.
Using a brushless motor with high torque and variable frequency which is controlled by an SCM of Microchiip's dsPIC30F series and driven by a special driver module of FAIRCHILD'S FSBB30CH Series to ensure the circuit's reliability.
Standby and cool-down function to ensure constant refrigeration when the machine is in standby.
With a dedicated key indicating the centrifugal force which has the inching functiion for momentary centrifugation.
With a motor gate lock mute mechanical & electrical integration.
Unique refrigeration system to ensure the temperature at the maximum rotation speed remain below 4℃.
Able to provide 20 kinds of operating modes for the user to programme and use freely.
With 10 levels for speed-up and speed-down control,the optimal speed-up and speed-down time is 25 seconds.
|
Model
|
HR/T16MM
|
|
Max Capacity
|
24×1.5/2.0ml
|
|
Max Speed（r/min）
|
16500
|
|
Max RCF（×g）
|
18780
|
|
Standard rotor
|
12×1.5/2.0ml
|
|
Speed precision
|
±50r/min
|
|
Refrigeration system
|
Import fluoride-free compressor and control valve
|
|
Temp.control range
|
－20℃～40℃
|
|
Temp.precision
|
±1℃
|
|
Timer range
|
0-99h59min
|
|
Nosie
|
≤58dB
|
|
Power
|
AV220V 50Hz
|
|
Model
|
capacity
|
speed（r/min）
|
RCF(×g)
|
|

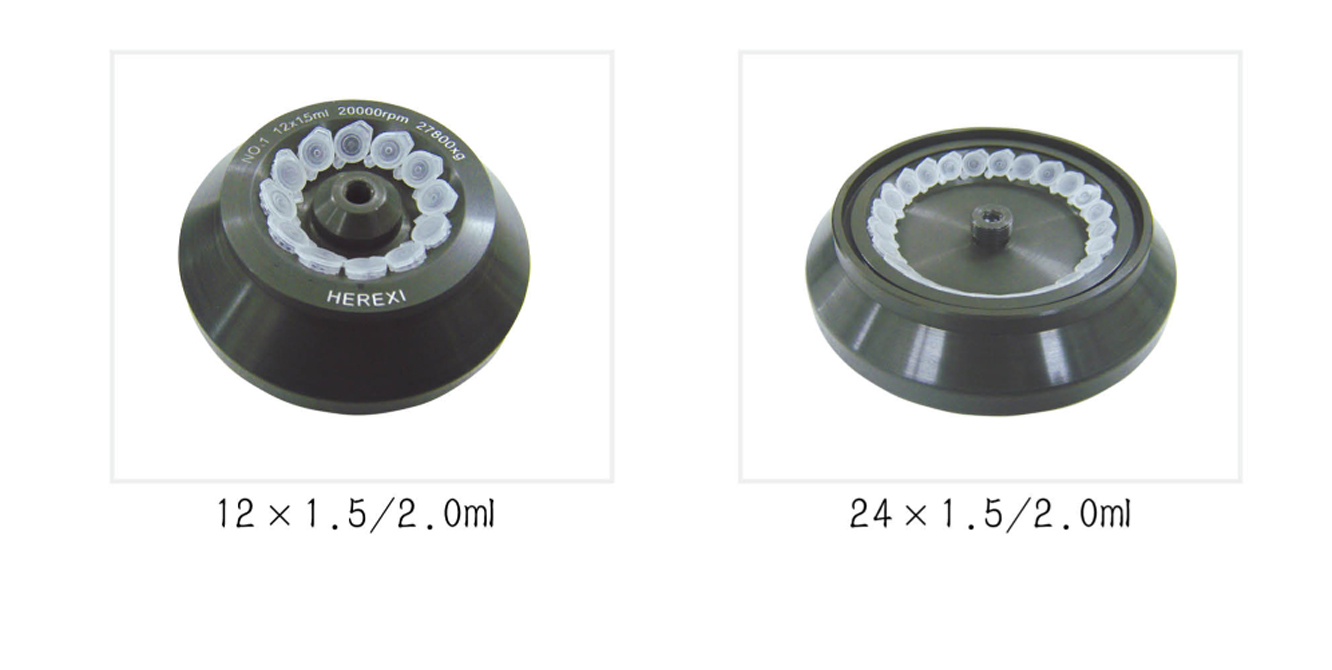

Angle rotor
|
12×1.5/2.0ml
|
16500
|
18780
|
|
24×1.5/2.0ml
|
13500
|
17000
|
|
