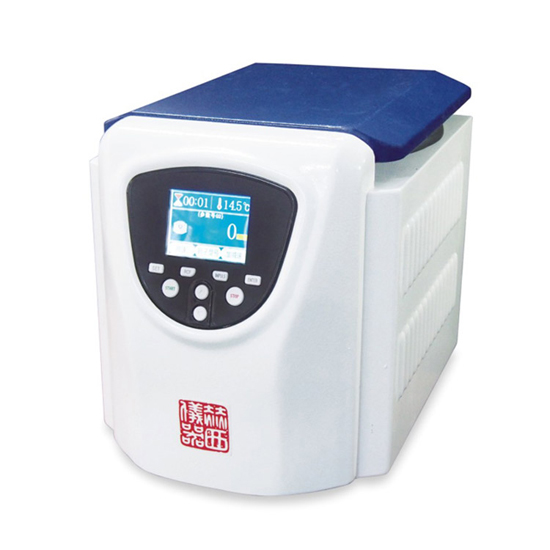

HR/T16MM Micro High speed refrigerated centrifuge
|
Features:
With TFT true-color LCD wide-screen touch monitor featured by intelligent control,easy and convenient operation,a touch panel and a simultaneous indication of both the set parameters and operation ones.
Driven by a variable-frequency brushless motor to achieve quite and clean operation.
With a dedicated key indicating the centrifugal force.
With a motor gate lock mute mechanical & electrical integration.
Designed with a shock absorber to reduce vibration and achieve smooth running.
10 speed-up and speed-down options,the optimal speed-up time is 30 seconds,the optimal speed-down time 30 seconds.
Rotors and adapters can be tailor-made according to customer's requirements.
Functions can be customized according to customer's needs,man-machine interaction is direct and pragmatic.
Can store 20 user programme.
|
|
Model
|
TG16MW
|
|
Max Capacity
|
12×10ml
|
|
Max Speed（r/min）
|
16500r/min
|
|
Max RCF（×g）
|
18780×g
|
|
Speed precision
|
±50r/min
|
|
Motor
|
Frequency motor
|
|
Temp.control range
|
－20℃～+40℃
|
|
Timer range
|
0-99h59min
|
|
Noise
|
≤65dB
|
|
weight
|
17kg
|
|
Dimension（L×W×H）
|
380×260×310mm
|
|
|

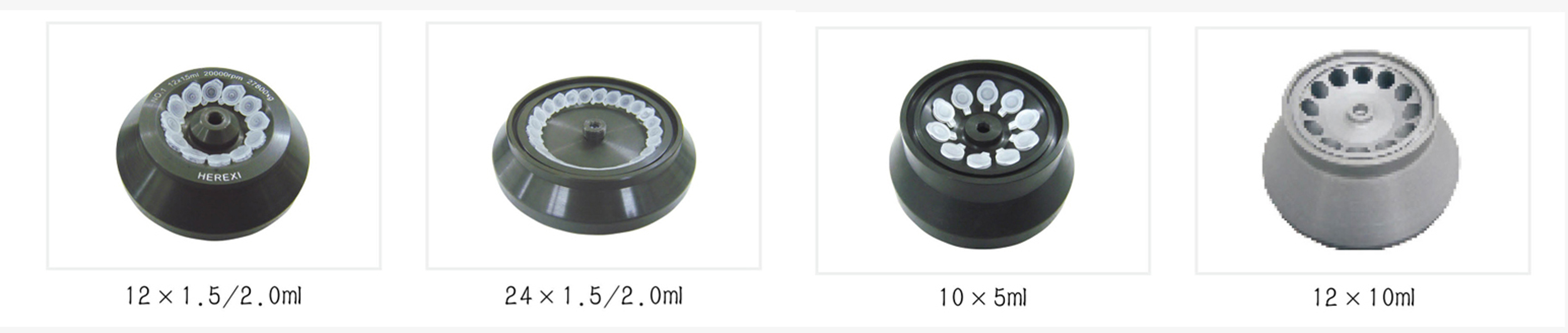

Model
|
Capacity
|
Max speed
|
Max RCF(xg)
|
|
Angle rotor
|
12X1.5/2.0ml
|
16500
|
18780
|
|
18X1.5/2.0ml
|
15000
|
17770
|
|
24X1.5/2.0ml
|
14000
|
18187
|
|
10X5ml
|
14000
|
13600
|
|
8X7ml
|
14000
|
12271
|
|
12X10ml
|
12000
|
13400
|
|
|
|
|
