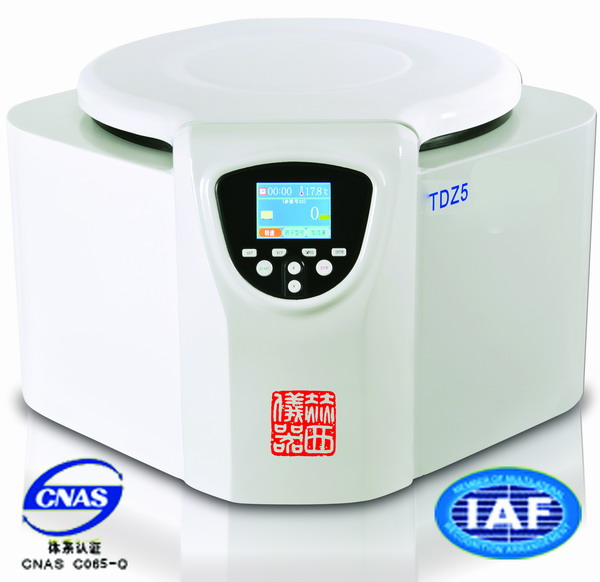

| TDZ5 bench top blood plasma centrifuge |
 |
| Product Name：TDZ5 bench top blood plasma centrifuge |
| Max Centrifugalforce:4×100ml Max Speed(r/min):5000 |
| PIN:1401 |
| Brand:HEREXI |
| Measurement:set |
| Weight:35Kg |
|
| This series is widely applied in experiments and scientific researches of various fields such as biochemistry,genetic engineering,forestry science,food safety,blood stations,clinical test,etc. |
| Product Details |
|
Features:
Enhanced ergonomics to achieve a streamline design that is safe,aesthetic and practical.

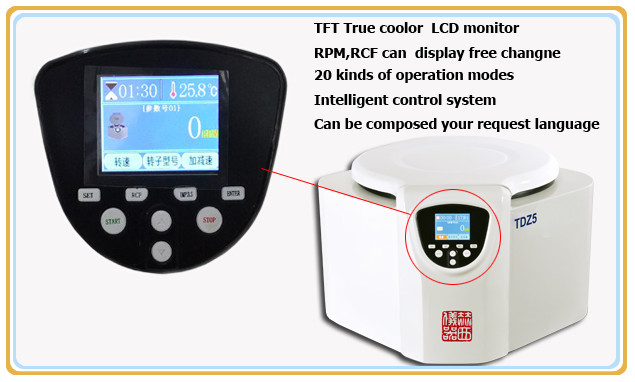

With TFT true-color LCD wide-screen touch monitor featured by intelligent control,easy and convenient operation,a touch panel and a simultaneous indication of both the set parameters and operation ones.
With a complete steel structure and a stainless steel centrifuge cavity,it is sturdy and durable.
Variable-frequency brushless motor that is maintenance and dust-free.
10 kinds of speed-up and speed-down options.Can store 20 user program which can be directly used by the user.The program previously used with be running when the machine is started.
With a dedicated key indicating the centrifugal force.
With a motor gate lock mute mechanical & electrical integration.
Multiple layers of shock absorbers with the function of automatic balancing to achieve smooth operation.
|
|
specification
|
|
Model
|
TDZ5
|
|
Max capacity
|
4X100 ml
|
|
Max speed（r/min）
|
5000
|
|
Max RCF（×g）
|
4600
|
|
speed precision
|
±50r/min
|
|
Time range
|
0-99h59min
|
|
Operation programme
|
20
|
|
Control and drive system
|
Frequency motor，micro control，direct drive
|
|
Total power
|
450 W
|
|
Power
|
AC220V 50Hz
|
|
Noise
|
≤65 dB
|
|
dimension（L×W×H）
|
600×540×360 mm
|
|
Weight
|
35 Kg
|
|
|
Model
|
TDZ5
|
|
Capacity
|
Max Speed
（r/ min） |
Max RCF
（×g） |
|

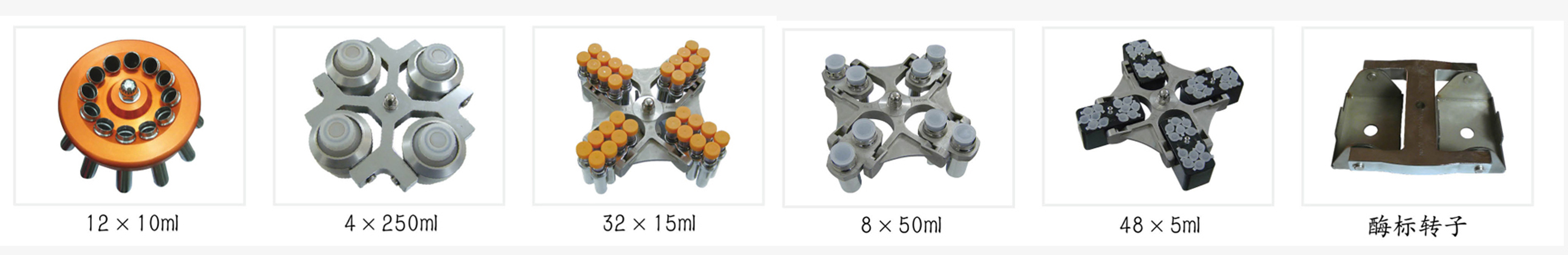

Angle rotor
|
12×15 ml
|
|
|
|
18×10 ml
|
|
|
|
24×10 ml
|
|
|
|
Swing bucket rotor
|
4×50ml
|
5000
|
4600
|
|
4×100ml
|
5000
|
4800
|
|
8×50ml
|
4000
|
2810
|
|
16×15ml
|
4000
|
2810
|
|
32×15ml
|
4000
|
2810
|
|
32×10ml
|
4000
|
2810
|
|
48×5ml/2ml
（vacuum tube）
|
4000
|
2940
|
|
76×5ml/2ml
（vacuum tube）
|
4000
|
3100
|
|
|
|
|
|
|
